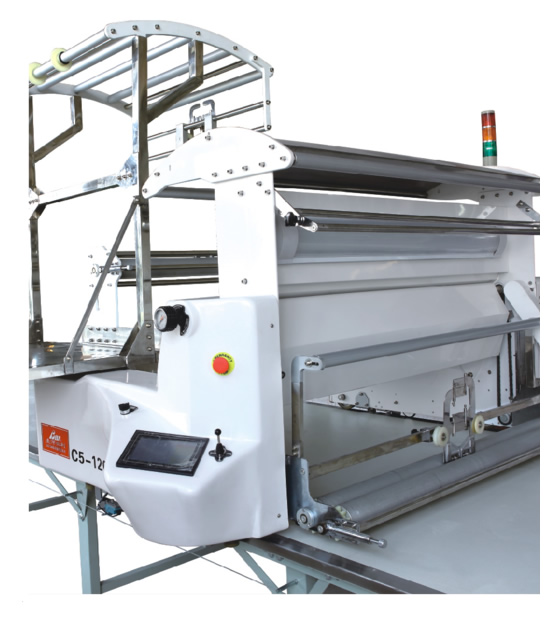

Automatic circular knitted fabric shop system performance
Model Features
1, Touch Screen: The TFT HMI easy to use
2, put the seam edge structure transfer device
3, adjustable elastic fabric laying
Accessory
1, the standard bracket M (450-770MM)
2, Special specification L (765-1390MM optional)
The main unit
Numerical control / automatic lift control / emergency stop device
Automatic feeding device
Standard equipment
NC panel LCD screen / support cloth rack / lighting equipment
Pieces of cloth frame set (less than 1.2 meters, other sizes can be customized)
|
Parameter
| Model |
C5-120 |
| Spreading mode |
Bidirectional |
| Maximum spreading width |
1200(mm) |
| Width of cut sets |
1530(mm) |
| Weight |
218(kg) |
| Maximum weight fabrics |
75(kg) |
| Precision length dimension |
±5（mm） |
| Maximum spreading speed |
90(m/min) |
| Maximum spreading height |
250(mm) |
| Machine size |
1320X2130X1000(mm) |
| Use of electricity |
1P/220(V),50(Hz)/1PH |
|
