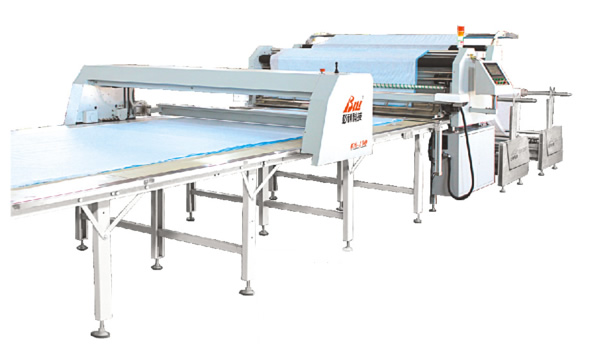

Current Position: Homepage >> Spreading System >> K6-160 Double-wrap Cloth Automatic Spreaders

Features:

· CNC intelligent automatic edge
· No cloth automatic safety shutdown, the reset line (green)
· Computer intelligent CNC tension-free spreading system
· CNC servo motor execution system, high-precision, high-efficiency, high-quality cloth shop
· Practical spreading pattern. Simultaneously using several different lengths spreading pattern
· HD touch screen human-machine interface operation fool. Digital
· Human separation secure operating system: operational safety and humane
· Apply the same or different fabrics multi-volume while spreading. High efficiency

Parameter

Model	K6-160	K6-190	K6-210	K6-260	K6-310
Spreading width	1600(mm)	1900(mm)	2100(mm)	2600(mm)	3100(mm)
The maximum diameter rolls	500(mm)
The maximum weight of the cloth roll	100(kg)
Maximum spreading speed	96(m/min)
Maximum height spreading	Single pull 230(mm)
Power	1P/220(V)，50(Hz)，1(KW)
Conference Board width	1830(mm)	2130(mm)	2330(mm)	2830(mm)	3330(mm)
Machine size	2300X1650 X950(mm)	2600X1650 X950(mm)	2800X1650 X950(mm)	3300X1650 X950(mm)	3800X1650 X950(mm)
