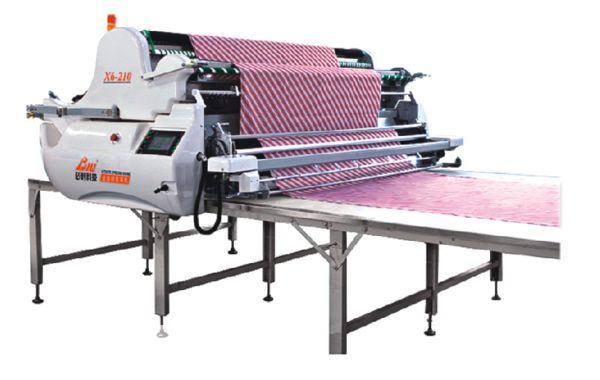

      Current Position: Homepage >> Spreading System >> X6-210 Needle shuttle Automatic Spreader





Features:

· No cloth shutdown, auto-complete origin back to zero, reset
· Five minutes automatic shutdown, green energy security (no use)
· Emergency stop. Do not drag down the cloth has been deformed
· Streamline shape reduces wind resistance and reduce vibration noise reduction
· Automatic distribution system
· Computer-controlled intelligent way without tension spreading
· PLC microcomputer control system for mechanized units
· To manipulate human-computer dialogue
· Servo Control System
· Easy to learn, easy to understand icons to visualize streamline
· operations, improve productivity, ensure quality


?Parameter
Model X6-160 X6-190 X6-210 X6-260 X6-310
Spreading width 1600(mm) 1900(mm) 2100(mm) 2600(mm) 3100(mm)
The maximum diameter rolls 500(mm)
The maximum weight of the cloth roll 80(kg)
Maximum spreading speed 96(m/min)
Maximum height spreading Single pull230(mm) / double pull160(mm)
Power 1P/220(V),50(Hz),1(KW)
Conference Board width 1830(mm) 2130(mm) 2330(mm) 2830(mm) 3330(mm)
Machine size 2300X1650
X950(mm)
2600X1650
X950(mm)
2800X1650
X950(mm)
3300X1650
X950(mm)
3800X1650
X950(mm)
